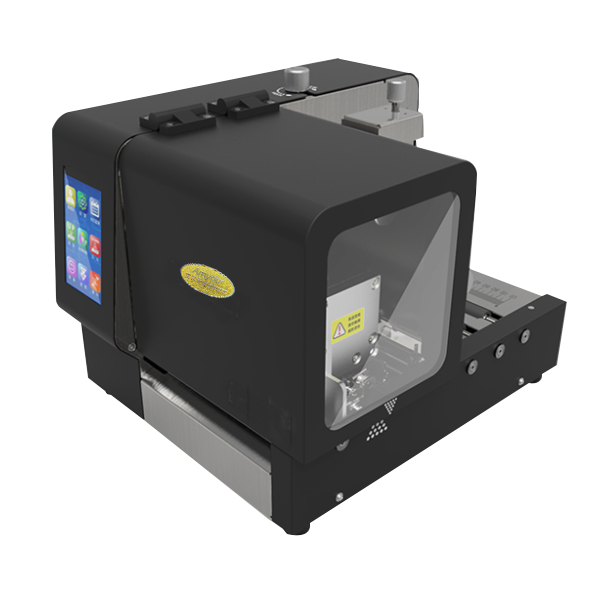

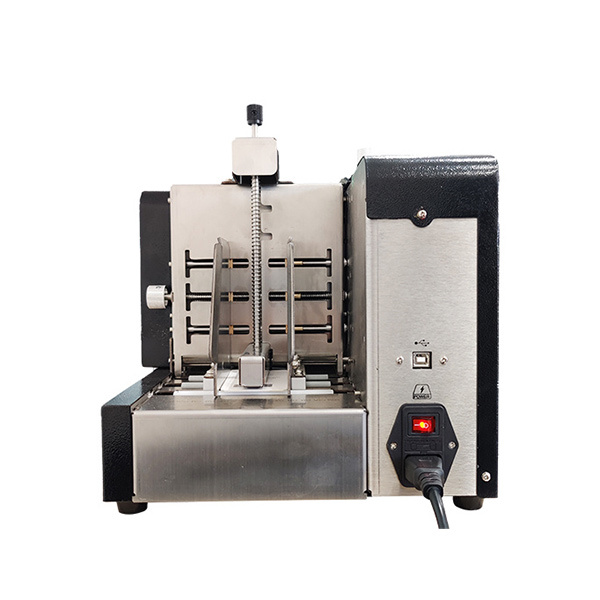

AMD41D Garment Tag Printers
Category:
E-mail:
Introduction
-
This label printer machine is a new thermal transfer label printer. It has the characteristics of small size and fast printing speed, which effectively improves the work efficiency of end users. , Secondly, the compact body design is more convenient for the space utilization of terminal products. At the same time, this label printing machine commercial supports the function of automatically saving carbon ribbons, which saves the cost of consumables for users. In addition, the combination of a 4.3-inch capacitive touch screen makes the user’s operation easier and more convenient. Various features reflect that this multi-functional signage printer can be used for special printing by users. best helper.
Features
-
● 4.3-inch capacitive touch screen is beautiful and generous.
● Small size, saving space.
● Support paper feed width of 20~120mm.
● Support printing media of any thickness within 100~500 grams.
● Support real-time control of print quality or print speed.
● Support USB communication mode.
● Support GDI printing mode.
● Support automatic ribbon saving function.
-
Category AMD 41D Printing Method Line thermal transfer printing Print Width 104 mm( 1280 dots) Print Resolution 300 DPI dot density: 118 dots/ mm Paper Width 20- 120 mm Print Length 40- 220 mm Paper Thickness 100- 500 grams weight( decreasing hardness) Paper Feeding Method 180° automatic paper feeding Ribbon Type Bat base/ hybrid base/ resin Ribbon Size Length: Max 300 meters; Inner hole: 1 inch Printing Speed Max 120 mm/ s Communication Interface USB 2.0 full speed Operating System Windows XP/ 7/ 8/ 10/ 11 Sensor Machine head opening monitoring, machine head temperature monitoring, paper feeding monitoring, paper in place monitoring, carbon ribbon monitoring, carbon ribbon monitoring Power Supply 220 VAC- 50 HZ Energy Consumption 150 W Working Environment Temperature: 0- 50 °C; Humidity: 20- 85% RH( non-condensing) Storage Environment Temperature: -25- 70 °C; Humidity: 0- 90% RH( excluding printing paper, non-condensing) Physical Size Width 270 mm* Height 305 mm* Depth 325 mm Gross Product Weight About 15 kg
Parameters
-
● 4.3-inch capacitive touch screen is beautiful and generous.
● Small size, saving space.
● Support paper feed width of 20~120mm.
● Support printing media of any thickness within 100~500 grams.
● Support real-time control of print quality or print speed.
● Support USB communication mode.
● Support GDI printing mode.
● Support automatic ribbon saving function.
-
Category AMD 41D Printing Method Line thermal transfer printing Print Width 104 mm( 1280 dots) Print Resolution 300 DPI dot density: 118 dots/ mm Paper Width 20- 120 mm Print Length 40- 220 mm Paper Thickness 100- 500 grams weight( decreasing hardness) Paper Feeding Method 180° automatic paper feeding Ribbon Type Bat base/ hybrid base/ resin Ribbon Size Length: Max 300 meters; Inner hole: 1 inch Printing Speed Max 120 mm/ s Communication Interface USB 2.0 full speed Operating System Windows XP/ 7/ 8/ 10/ 11 Sensor Machine head opening monitoring, machine head temperature monitoring, paper feeding monitoring, paper in place monitoring, carbon ribbon monitoring, carbon ribbon monitoring Power Supply 220 VAC- 50 HZ Energy Consumption 150 W Working Environment Temperature: 0- 50 °C; Humidity: 20- 85% RH( non-condensing) Storage Environment Temperature: -25- 70 °C; Humidity: 0- 90% RH( excluding printing paper, non-condensing) Physical Size Width 270 mm* Height 305 mm* Depth 325 mm Gross Product Weight About 15 kg
Applications
