Automatic Canvas Bag Silk Screen Printer For Non Woven Bag Screen Mesh Printing
Category:
E-mail:
Introduction
-

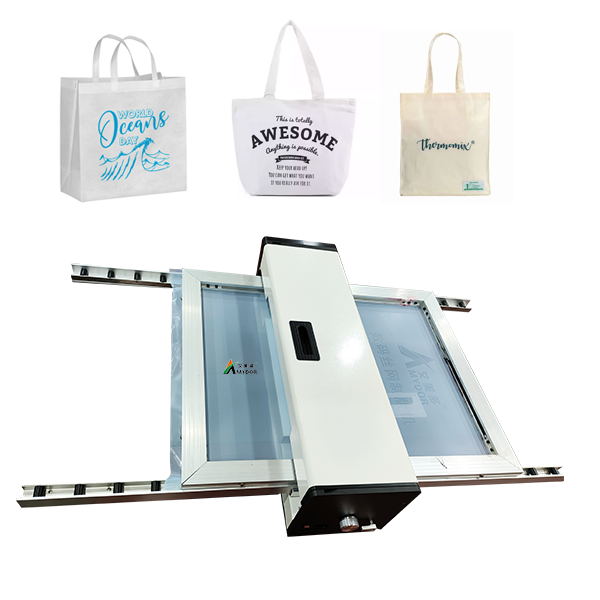

This canvas bag silk screen printer is easy to operate and can realize fast silk screen frame production. In the production process, all traditional processing processes such as film and exposure are not required, and digital printing is directly realized. In addition, this canvas bag non woven bag silk screen printing machine can also be customized according to the needs of customers to improve efficiency, simplify the process of screen printing plate making, and make silk screen printing easier and faster.
Features
-
● The canvas bag screen mesh printing machine is easy to operate, energy-saving and environmentally friendly, saving operating time and floor space.
● Ultra-wide workbench to meet various customized sizes
● No need for film, no need to rinse, easy to print screen frame
● Ultra-high printing accuracy, more extensive production requirements
● Greatly simplify the plate making process
-
Project AMD550A Printing method Thermal transfer Print width 300 mm Print resolution 300 dpi Point density 11.8 dots/ mm The minimum inner diameter of the screen frame - the maximum width 360- 560 mm The minimum outer diameter of the screen frame - the maximum width 440- 640 mm Screen frame thickness 25- 30 mm Printing speed MAX 10 mm/ s Communication Interface USB 2.0 full speed Operating system Windows WIN 7/ 8/ 10/ 11 Power supply 220 VAC~ 50 HZ Energy consumption 150 W Working environment Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation) Storage environment Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation) Reliability Print head life: 20 KM Physical size 730 mm long x 200 mm wide x 200 mm high Total product weight About 22 Kg
Parameters
-
● The canvas bag screen mesh printing machine is easy to operate, energy-saving and environmentally friendly, saving operating time and floor space.
● Ultra-wide workbench to meet various customized sizes
● No need for film, no need to rinse, easy to print screen frame
● Ultra-high printing accuracy, more extensive production requirements
● Greatly simplify the plate making process
-
Project AMD550A Printing method Thermal transfer Print width 300 mm Print resolution 300 dpi Point density 11.8 dots/ mm The minimum inner diameter of the screen frame - the maximum width 360- 560 mm The minimum outer diameter of the screen frame - the maximum width 440- 640 mm Screen frame thickness 25- 30 mm Printing speed MAX 10 mm/ s Communication Interface USB 2.0 full speed Operating system Windows WIN 7/ 8/ 10/ 11 Power supply 220 VAC~ 50 HZ Energy consumption 150 W Working environment Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation) Storage environment Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation) Reliability Print head life: 20 KM Physical size 730 mm long x 200 mm wide x 200 mm high Total product weight About 22 Kg
