Digital Artwork Printmaking Silk Screen Printing Board Machine AMD550A
Category:
E-mail:
Introduction
-

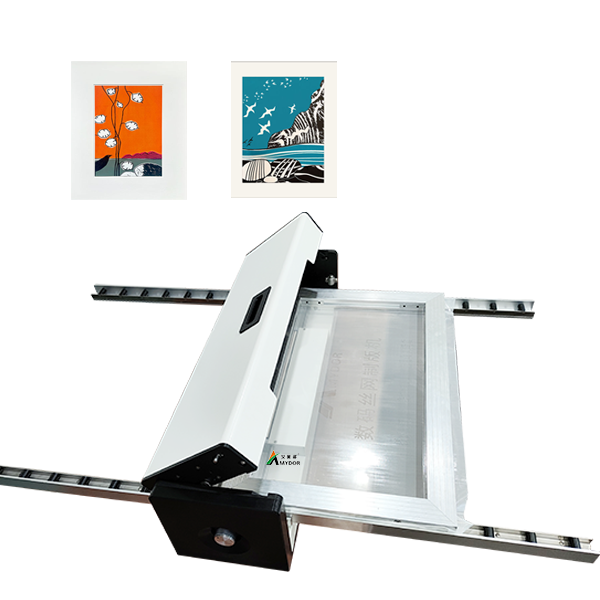

This artwork printmaking screen printing board machine does not need professional plate-making skills, images are directly imported into the computer, and no steps such as exposure and drying are required. In addition, there is no need for a darkroom, a washing table, and no need to store a large number of plates. A desktop workbench can effectively save space and improve production efficiency. This artwork printmaking silk screen printer can satisfy a variety of products in the screen printing industry.
Features
-
● This printmaking silk screen plate maker is easy to operate, fast and convenient, 300dpi.
● This artwork silk screen printing machine does not need film or medicine.
● No printing and no washing.
● Save manpower and time, suitable for short-time printing and test production.
● This silk screen maker does not need solvents, does not produce waste water, and can protect the environment.
-
Project AMD550A Printing method Thermal transfer Print width 300 mm Print resolution 300 dpi Point density 11.8 dots/ mm The minimum inner diameter of the screen frame - the maximum width 360- 560 mm The minimum outer diameter of the screen frame - the maximum width 440- 640 mm Screen frame thickness 25- 30 mm Printing speed MAX 10 mm/ s Communication Interface USB 2.0 full speed Operating system Windows WIN 7/ 8/ 10/ 11 Power supply 220 VAC~ 50 HZ Energy consumption 150 W Working environment Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation) Storage environment Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation) Reliability Print head life: 20 KM Physical size 730 mm long x 200 mm wide x 200 mm high Total product weight About 22 Kg
Parameters
-
● This printmaking silk screen plate maker is easy to operate, fast and convenient, 300dpi.
● This artwork silk screen printing machine does not need film or medicine.
● No printing and no washing.
● Save manpower and time, suitable for short-time printing and test production.
● This silk screen maker does not need solvents, does not produce waste water, and can protect the environment.
-
Project AMD550A Printing method Thermal transfer Print width 300 mm Print resolution 300 dpi Point density 11.8 dots/ mm The minimum inner diameter of the screen frame - the maximum width 360- 560 mm The minimum outer diameter of the screen frame - the maximum width 440- 640 mm Screen frame thickness 25- 30 mm Printing speed MAX 10 mm/ s Communication Interface USB 2.0 full speed Operating system Windows WIN 7/ 8/ 10/ 11 Power supply 220 VAC~ 50 HZ Energy consumption 150 W Working environment Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation) Storage environment Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation) Reliability Print head life: 20 KM Physical size 730 mm long x 200 mm wide x 200 mm high Total product weight About 22 Kg
Keyword:
printmaking silk screen printer
artwork silk screen printer
printmaking screen printing board machine
Applications
